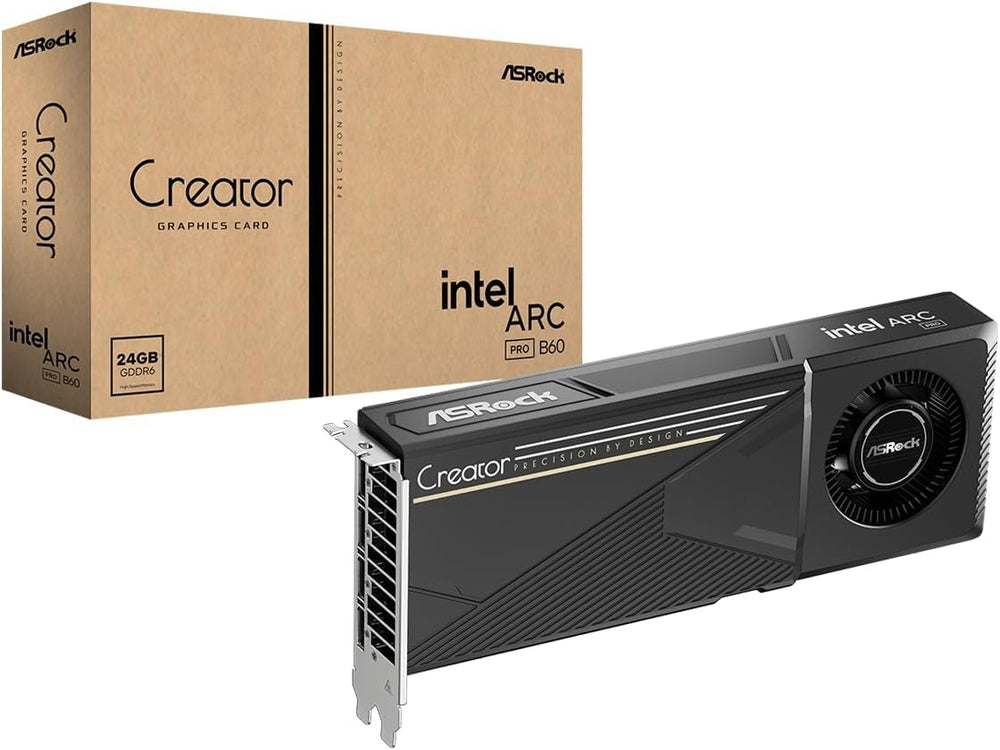

ASRock Intel Arc Pro B60 Creator 24GB Graphics Card

Product overview

The ASRock Intel Arc Pro B60 Creator 24GB is a workstation graphics card for professional desktop workstations, digital content creation and compatible GPU-accelerated applications. Its 24 GB GDDR6 dedicated graphics memory stores the textures, frame buffers and project data used by the GPU. Manufacturer model: 90-GA60ZZ-00UANZ.

Key features

• Intel Arc Pro B60 graphics processor
• 24 GB GDDR6 dedicated video memory
• Manufacturer model: 90-GA60ZZ-00UANZ
• Cooling: single-fan blower cooling
• Connections: 4 x DisplayPort 2.1
• Host interface: PCI Express 5.0 x8

Professional graphics, local AI and media creation

Intel Arc Pro B60 uses Xe2-HPG graphics architecture with 160 XMX AI engines. Its 24GB GDDR6 memory, 192-bit interface and 19Gbps data rate provide 456GB/s memory bandwidth. The professional platform supports compatible design, visualization and AI applications. Its media engines support AV1 and dual-encode workflows in compatible software. Use Intel Arc Pro drivers and check your application vendor’s supported hardware and driver list rather than assuming certification for every program.

Dedicated graphics memory

The 24 GB GDDR6 graphics-memory configuration is separate from your computer’s system RAM. The board uses a 192-bit memory interface. Its listed memory data rate is 19 Gbps. Dedicated video memory holds active GPU resources; the usable workload size also depends on the application, project settings and other resources used by the software.

Cooling and display connectivity

Cooling configuration: single-fan blower cooling. Display connections: 4 x DisplayPort 2.1. Use these physical outputs to select suitable monitor cables or adapters. Supported resolution and refresh rate depend on the display, connection and driver.

Technical specifications

System integration

Host connection: PCI Express 5.0 x8. Card dimensions: 271 x 112 x 39 mm. Expansion-slot space: 2-Slot. Graphics power connection: 1 x 8-pin. ASRock recommends an additional 30mm of length clearance for the power-cable installation. Match the card with the motherboard, case and full-system power requirements. Install the appropriate manufacturer driver for the operating system and applications.

Performance varies by application, drivers, graphics settings, cooling and the rest of the system. This listing is for the graphics card; a complete computer, monitor and application licenses are not included.
