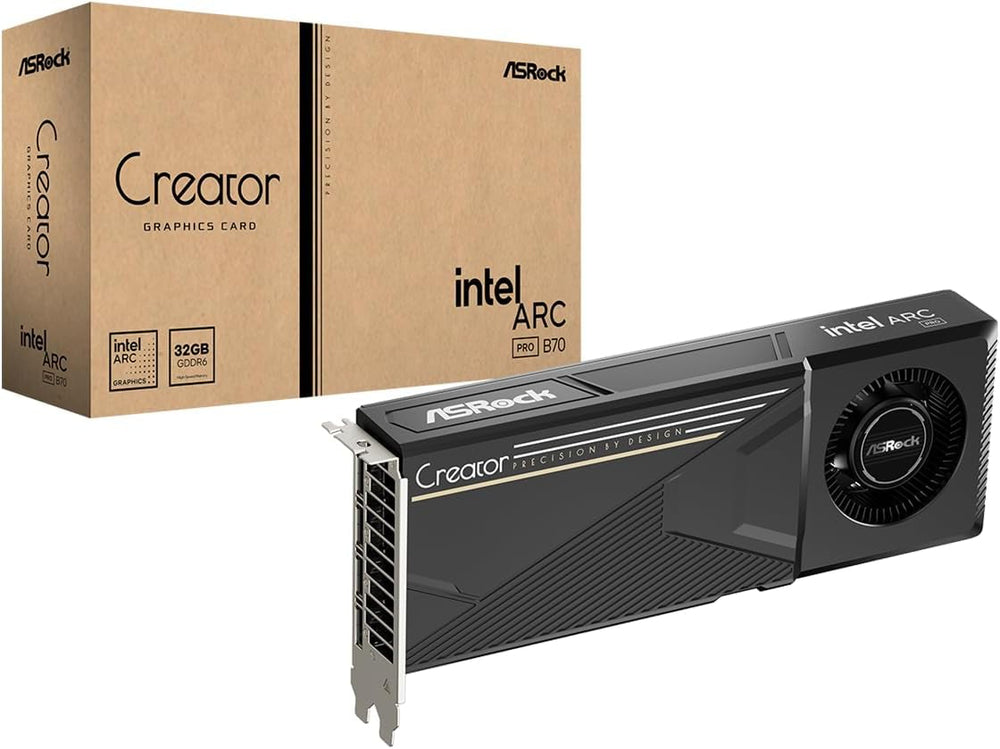

ASRock Intel Arc Pro B70 Creator 32GB Graphics Card

Product overview

The ASRock Intel Arc Pro B70 Creator 32GB is a workstation graphics card for professional desktop workstations, digital content creation and compatible GPU-accelerated applications. Its 32 GB GDDR6 dedicated graphics memory stores the textures, frame buffers and project data used by the GPU. Manufacturer model: 90-GA6GZZ-00UANF.

Key features

• Intel Arc Pro B70 graphics processor
• 32 GB GDDR6 dedicated video memory
• Manufacturer model: 90-GA6GZZ-00UANF
• Cooling: single-fan blower cooling
• Connections: 4 x DisplayPort 2.1
• Host interface: PCI Express 5.0 x16

Professional graphics and memory-intensive projects

The Intel Arc Pro B70 workstation platform is intended for professional graphics and supported AI applications. The 32GB graphics-memory capacity provides room for project assets or models that fit within that memory budget. Professional GPU drivers, operating-system support and the application’s acceleration backend are important when selecting a workstation card. Evaluate the exact driver and software combination used by your workflow.

Dedicated graphics memory

The 32 GB GDDR6 graphics-memory configuration is separate from your computer’s system RAM. The board uses a 256-bit memory interface. Its listed memory data rate is 19 Gbps. Dedicated video memory holds active GPU resources; the usable workload size also depends on the application, project settings and other resources used by the software.

Cooling and display connectivity

Cooling configuration: single-fan blower cooling. Display connections: 4 x DisplayPort 2.1. Use these physical outputs to select suitable monitor cables or adapters. Supported resolution and refresh rate depend on the display, connection and driver.

Technical specifications

System integration

Host connection: PCI Express 5.0 x16. Card dimensions: 271 x 112 x 39 mm. Expansion-slot space: 2-Slot. Graphics power connection: 1 x 12V-2×6-pin. Manufacturer-listed system power-supply recommendation: 550W. Match the card with the motherboard, case and full-system power requirements. Install the appropriate manufacturer driver for the operating system and applications.

Performance varies by application, drivers, graphics settings, cooling and the rest of the system. This listing is for the graphics card; a complete computer, monitor and application licenses are not included.
